VERSITEX®

Versitex® is a lightweight, high-strength thermoplastic composite engineered for durability and performance. It resists moisture, corrosion, and chemicals, offers superior thermal and sound insulation, and is fully recyclable—delivering reliable protection, easy maintenance, and cost-effective solutions across demanding applications.

CALL TO ORDER 1-877-960-2644 download flyer

product info

Manufactured
to be Tough

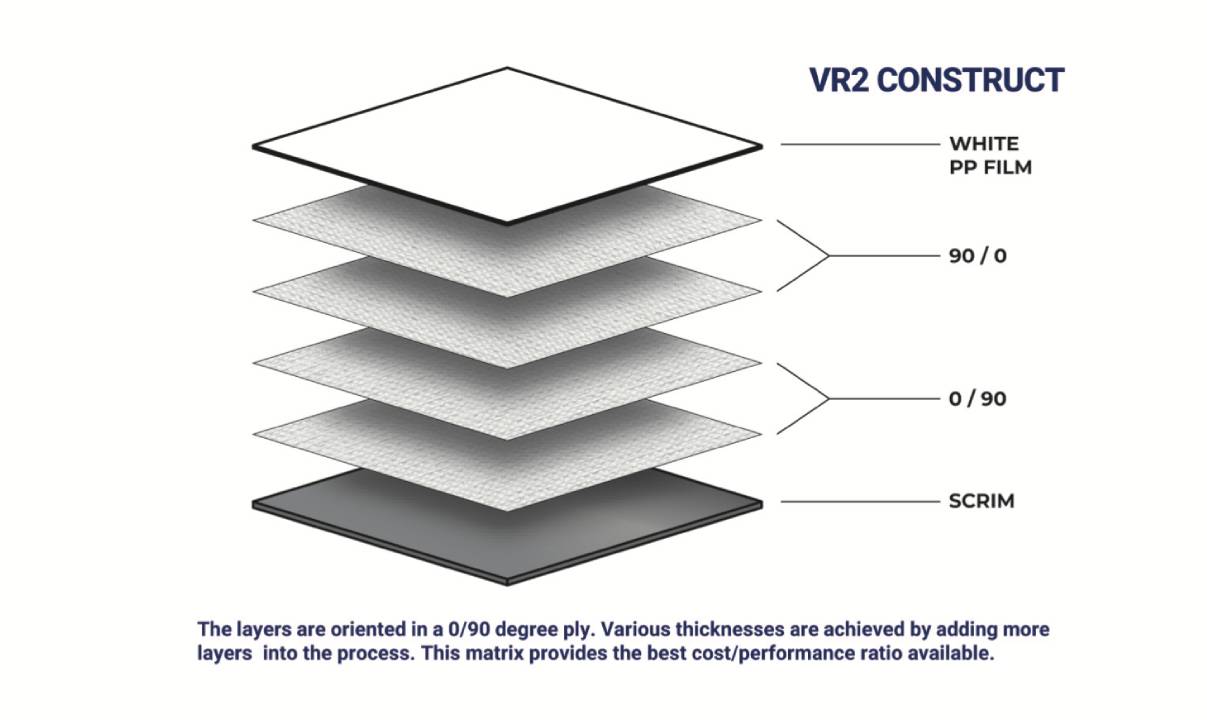

The strength of Versitex® lies in its advanced manufacturing process. Continuous glass fibers are combined with polypropylene to form unidirectional sheets, which are cross-plied and laminated. This process delivers a highly durable material that can withstand corrosion, moisture, and exposure to common cleaning chemicals, even in the most demanding conditions.


Versitex® sheets can be manufactured with an optional fabric backing or bonding film to improve adhesion to injected or poured foam systems. This feature supports the development of lightweight, high-performance panels suitable for refrigeration and insulation applications. Our products can also be drilled, fastened, or riveted for added versatility.


Depending on the final size and thickness required for an application (from 0.040 inch to 0.200 inch), Versitex® can be rolled into coils up to 1,200 feet in length or cut into sheets and palletized.

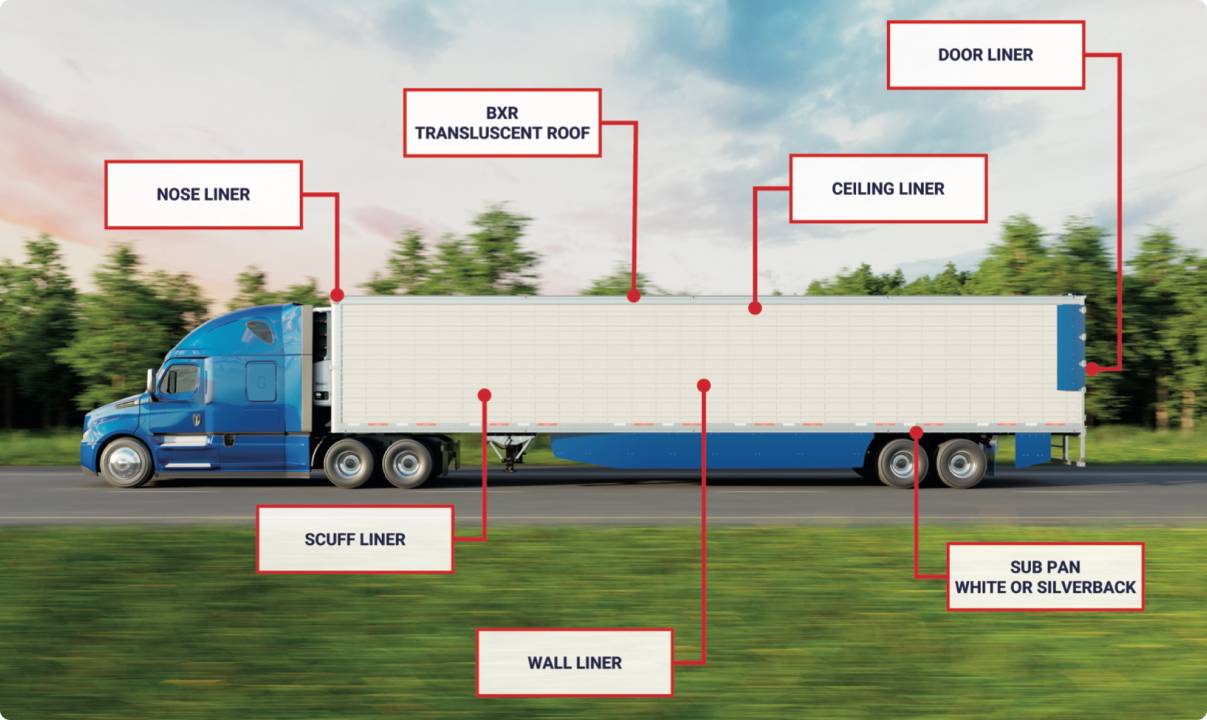

Made for trailers, recreational vehicles, building products, public transportation, intermodal, material handling & storage, and more.


PropertyTest StandardVR1VR1.5 VR2VR3VR8VR10Units
Flexural Strength (direction 0)ASTM D790130403120051180433403916039940psi
Flexural Strength (direction 90)ASTM D79097301039021860255003368036380psi
Energy absorbed at peak loadASTM D3763N/AN/A13.3614.8455.1253.06J
Glass content (by weight)ASTM D3171*44.5%38.5%48.2%51.1%50.7%53.5%%
Nominal thicknessN/A0.036 ± 0.0050.038 ± 0.0050.060 ± 0.0050.080 ± 0.0050.180 ± 0.0100.200 ± 0.010in
Surface densityN/A0.21 ± 0.010.21 ± 0.010.38 ± 0.020.54 ± 0.021.19 ± 0.021.35 ± 0.03lbs/sqft
Tensile strength (direction 0)ASTM D63821300**1786032780323003722038680psi
Tensile modulus (direction 0)ASTM D6381272000**10346001586000151400018060001896000psi
Tensile Elongation (direction 0)ASTM D6382.1%**4.1%2.4%2.4%2.3%2.3%%
Thermal expansion (avg. of -40 to 65 deg C)ASTM E831N/AN/A181.5204.5172175microns/m/degC
Thermal conductivityASTM E14610.250.240.290.30.360.36W/mK
Specific gravityASTM D7921.281.231.311.321.321.36N/A

*Only one test was performed for glass content. Contact us for guidance or additional questions on these values.
**Tested along the 90-degree direction.
These are provided for informational purposes only. We recommend performing your own internal testing for your specific application.
